A block plan gives vital information about the installed fire system and clearly shows the location of fixtures such as hydrants, hose reels, isolation valves, fire indicator panel, switchboard and other important system information to help plan an emergency response to extinguish a fire. They also must be compliant to Australian Standard AS 2419.1.
Fire drawings in general should be permanently attached, be a minimum of A3 in size, be water and fade resistant. Sprinkler Block Plan is located adjacent the sprinkler control valve. A Hydrant Block Plan adjacent the hydrant booster and Zone Diagrams are installed adjacent the fire indicator panel (FIP). Tactical Fire Plans are in a fire control room/centre.

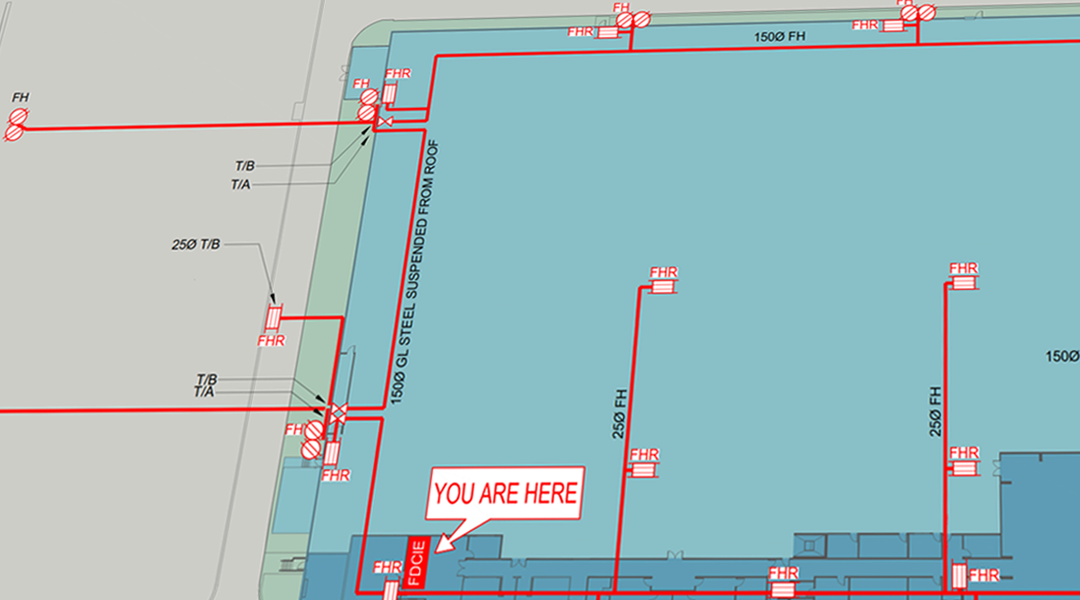

These are diagrams clearly showing the fire hydrants, isolation valves and other relevant information of the fire hydrant system installed on site. Used by the fire brigade to determine the closest hydrants to the fire as well as additional system information to assist with planning and extinguishing a fire.
Similar to a hydrant block plan only these show the areas protected by fire sprinklers and need to meet Australian Standards AS 2118.1. They too show stop valves, important operating and other relevant system information. Predominantly used by the fire brigade to establish isolation & alarm valve locations, hazard class and protected areas of each sprinkler installation.
Tactical Fire Plans (TFP’s) are scaled drawings showing the location of installed fire & safety equipment available on a site. Tactical Fire Plans are a component of the Emergency Services Information Package (ESIP). Firefighters will utilise these drawings to establish the best strategies or tactics to manage a fire or emergency incident.

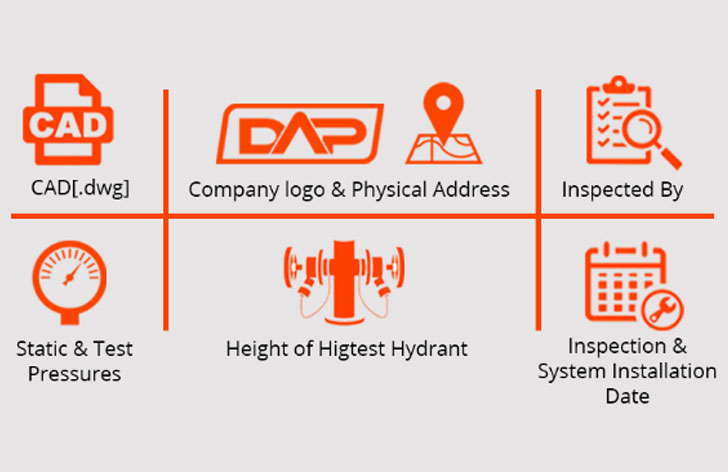

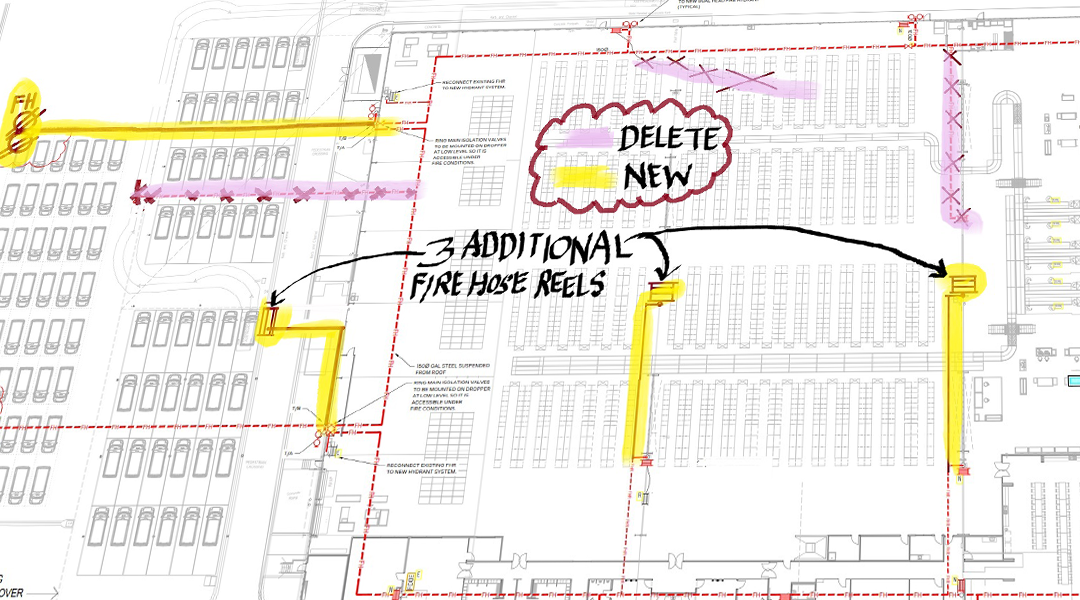

To provide a fixed quote to create a Hydrant Block Plan, we need the hydraulic site plan which shows the fire services and site address. For Zone Diagrams provide the zone coverage areas and fire plans and we’ll ensure it meets Australian Standard AS 1670.1. To price Tactical Fire Plans, we need drawings of the mechanical, electrical, hydraulic and fire services and a fire engineering report.
Design Assist Partners supply fire drawings, block plans, sprinkler block plans, zone diagrams and tactical fire plans to our clients. We also support clients with As Built Drawings, O&M Manuals and Evacuation Plans. Apply online for a same day quote.
